# Android_boot_image_editor
[![CI](https://github.com/cfig/Android_boot_image_editor/actions/workflows/main.yml/badge.svg)](https://github.com/cfig/Android_boot_image_editor/actions/workflows/main.yml)
[![License](http://img.shields.io/:license-apache-blue.svg?style=flat-square)](http://www.apache.org/licenses/LICENSE-2.0.html)

A tool for reverse engineering Android ROM images.

##  Requirements
Make sure you have [JDK11+](https://www.oracle.com/java/technologies/downloads/#java17) and [Python3](https://www.python.org/downloads/).

* Linux / WSL: `sudo apt install git device-tree-compiler lz4 xz-utils zlib1g-dev openjdk-17-jdk gcc g++ python3 python-is-python3 p7zip-full android-sdk-libsparse-utils erofs-utils`

* Mac: `brew install lz4 xz dtc`

* Windows: Install openssl and device-tree compiler with [chocolate](https://chocolatey.org/install)
`choco install openssl dtc-msys2 zip vim`

## Getting Started
Put your boot.img to current directory, then start gradle 'unpack' task:

```bash
cp <original_boot_image> boot.img
./gradlew unpack
```

Your get the flattened kernel and /root filesystem under **./build/unzip\_boot**:

    build/unzip_boot/
    ├── boot.json     (boot image info)
    ├── boot.avb.json (AVB only)
    ├── kernel
    ├── second        (2nd bootloader, if exists)
    ├── dtb           (dtb, if exists)
    ├── dtbo          (dtbo, if exists)
    └── root          (extracted initramfs)

Then you can edit the actual file contents, like rootfs or kernel.
Now, pack the boot.img again

    ./gradlew pack

You get the repacked boot.img at $(CURDIR):

    boot.img.signed

Well done you did it! The last step is to star this repo :smile


### live demo
<!-- ![](doc/op.gif) -->
<p align="center">
    <img src=doc/op.gif width="615" height="492">
</p>

## Supported ROM image types

| Image Type      | file names                                                     | platforms   | note                    |
| --------------- |----------------------------------------------------------------|-------------|-------------------------|
| boot            | boot.img, init_boot.img, boot-debug.img, boot-test-harness.img | all         |                         |
|vendor boot      | vendor_boot.img, vendor_boot-debug.img, vendor_kernel_boot.img | all         |                         |
| recovery        | recovery.img, recovery-two-step.img                            | all         |                         |
| vbmeta          | vbmeta.img, vbmeta_system.img etc.                             | all         |                         |
| dtbo            | dtbo.img                                                       | linux & mac |                         |
| dtb             | *.dtb                                                          | linux & mac |                         |
| sparse images   | system.img, vendor.img, product.img etc.                       | linux       |                         |
| OTA payload     | payload.bin                                                    | all         | Windows git-bash        |

Please note that the boot.img MUST follows AOSP verified boot flow, either [Boot image signature](https://source.android.com/security/verifiedboot/verified-boot#signature_format) in VBoot 1.0 or [AVB HASH footer](https://android.googlesource.com/platform/external/avb/+/master/README.md#The-VBMeta-struct) (a.k.a. AVB) in VBoot 2.0.

## compatible devices

| Device Model                   | Manufacturer | Compatible           | Android Version          | Note |
|--------------------------------|--------------|----------------------|--------------------------|------|
| Pixel 7 (panther)              | Google       | Y                    | 13 (TQ2A.230505.002) <Br>2023)| |
| ADT-3 (adt3)                   | Askey/Google | Y                    | 12 (spp2.210219.010)     | amlogic inside, <Br>Android TV |
| Pixel 3 (blueline)             | Google       | Y                    | 12 (spp2.210219.008, <Br>2021)| |
| Pixel 3 (blueline)             | Google       | Y                    | 11 (RP1A.200720.009, <Br>2020)| [more ...](doc/additional_tricks.md#pixel-3-blueline) |
| Pixel 3 (blueline)             | Google       | Y                    | Q preview (qpp2.190228.023, <Br>2019)| [more ...](doc/additional_tricks.md#pixel-3-blueline) |
| Redmi K30 4G (phoenix[n])      | XiaoMi       | Y                    | 10 | [verified](https://github.com/cfig/Android_boot_image_editor/issues/17#issuecomment-817169307) by @eebssk1 |
| TS10                           | Topway       | Y                    | 10                       | car headunit, @mariodantas |
| Pixel XL (marlin)              | HTC          | Y                    | 9.0.0 (PPR2.180905.006, <Br>Sep 2018)| [more ...](doc/additional_tricks.md#pixel-xl-marlin) |
| K3 (CPH1955)                   | OPPO         | Y for recovery.img<Br> N for boot.img  | Pie    | [more](doc/additional_tricks.md#k3-cph1955) |
| Z18 (NX606J)                   | ZTE          | Y                    | 8.1.0                    | [more...](doc/additional_tricks.md#nx606j) |
| Nexus 9 (volantis/flounder)    | HTC          | Y(with some tricks)  | 7.1.1 (N9F27M, Oct 2017) | [tricks](doc/additional_tricks.md#tricks-for-nexus-9volantis)|
| Nexus 5x (bullhead)            | LG           | Y                    | 6.0.0_r12 (MDA89E)       |      |
| Moto X (2013) T-Mobile         | Motorola     | N                    |                          |      |
| X7 (PD1602_A_3.12.8)           | VIVO         | N                    | ?                        | [Issue 35](https://github.com/cfig/Android_boot_image_editor/issues/35) |
| Realme GT Neo 3                | Realme       | N                    | 12                       | [Issue 105](https://github.com/cfig/Android_boot_image_editor/issues/105) |

## more examples
<details>
  <summary>working with recovery.img</summary>

Please remember to clean the work directory first.

```bash
rm *.img
cp <your_recovery_image> recovery.img
./gradlew unpack
./gradlew pack
```

</details>

<details>
  <summary>working with vbmeta.img</summary>


```bash
rm *.img
cp <your_vbmeta_image> vbmeta.img
./gradlew unpack
./gradlew pack
```

</details>

<details>
  <summary>clean workspace</summary>
When you finished current work and need to clean the workspace for next image, it's a good idea to call the `clear` command:

```bash
./gradlew clear
```

</details>

<details>
  <summary>working with boot.img and vbmeta.img</summary>

If your vbmeta.img contains hash of boot.img, you MUST update vbmeta image together.

```bash
rm *.img
cp <your_boot_image> boot.img
cp <your_vbmeta_image> vbmeta.img
./gradlew unpack
./gradlew pack
```
Your boot.img.signed and vbmeta.img.signd will be updated together, then you can flash them to your device.

</details>

<details>
  <summary>working with vendor_boot.img + vbmeta.img (Pixel 5 etc.)</summary>
Most devices include hash descriptor of vendor_boot.img in vbmeta.img, so if you need to modify vendor_boot.img, you need to update vbmeta.img together.

```bash
rm *.img
cp <your_vendor_boot_image> vendor_boot.img
cp <your_vbmeta_image> vbmeta.img
./gradlew unpack
./gradlew pack
./gradlew flash
```

Please note that to use 'gradle flash', your host machine must be connectted to your DUT with adb, and you already 'adb root'.

</details>

<details>
  <summary>How to edit device tree blob(dtb) inside vendor_boot.img</summary>

If you want to edit the device-tree blob in place:

```bash
cp <your_vendor_boot_image> vendor_boot.img
cp <your_vbmeta_image> vbmeta.img
./gradlew unpack
==> now you can edit build/unzip_boot/dtb.dts directly
./gradlew pack
```

During unpack stage, dtb will be dumped to file `build/unzip_boot/dtb`, dts will be decompiled to `build/unzip_boot/dtb.dts`.
You can edit `dtb.dts` directly, and it will be compiled to dtb duing repack stage.

If you just want to replace the dtb with the one that is compiled outside this tool, please

```bash
cp <your_vendor_boot_image> vendor_boot.img
cp <your_vbmeta_image> vbmeta.img
./gradlew unpack
rm build/unzip_boot/dtb.dts
cp <your_dtb> build/unzip_boot/dtb
./gradlew pack
```

</details>

<details>

  <summary>How to pull device tree blob(dtb) from a rooted device</summary>

If you have a rooted device and want to pull /proc/device-tree
```bash
touch fake.dtb
./gradlew pull
```
This tool will copy `dtc` to the target device via `adb`, and dump the dtb and dts file. Eventually you should get something like this
```
+--------+------------------------------+
|  What  |            Where             |
+--------+------------------------------+
| source | /proc/device-tree            |
+--------+------------------------------+
| DTB    | panther.dtb                  |
+--------+------------------------------+
| DTS    | build/unzip_boot/panther.dts |
+--------+------------------------------+

```

</details>

<details>

  <summary>How to work edit device tree blob(dtb) file</summary>

If you have a dtb file and want to edit its content
```bash
cp <your_dtb_file> .
./gradlew unpack
```
This tool will decompile it and put the decompiled source to build/unzip_boot.

```
                        Unpack Summary of panther.dtb
+------+------------------------------+
| What |            Where             |
+------+------------------------------+
| DTB  | panther.dtb                  |
+------+------------------------------+
| DTS  | build/unzip_boot/panther.dts |
+------+------------------------------+
```

</details>

<details>
  <summary>working with system.img</summary>

```bash
cp <your_system_image> system.img
./gradlew unpack
```
You get `system.img.unsparse`, that's a plain ext4 filesystem data.

</details>

<details>
  <summary>How to disable AVB verification</summary>

The idea is to set flag=2 in main vbmeta.

```bash
rm *.img
cp <your_vbmeta_image> vbmeta.img
./gradlew unpack
vim -u NONE -N build/unzip_boot/vbmeta.avb.json  -c ":19s/0/2/g" -c ":wq"
./gradlew pack
```
Then flash vbmeta.img.signed to your device.

</details>

<details>

  <summary>How to merge init_boot.img into boot.img</summary>

* unpack init_boot.img and copy out "build/unzip_boot/root".
* clear workspace by `gradle clear`, then unpack boot.img
* copy back the "build/unzip_boot/root"
* edit build/unzip_boot/boot.json
- change `ramdisk.size` to 1
- change `ramdisk.file` from "build/unzip_boot/ramdisk.img" to "build/unzip_boot/ramdisk.img.lz4"

</details>

<details>

  <summary>work with payload.bin</summary>

- extract everything

Usage:
```
    gradle unpack
```

- extract only 1 specified partition
Usage:
```
    gradle unpack -Dpart=<part_name>
```
Example:
```
    gradle unpack -Dpart=boot
    gradle unpack -Dpart=system
```

Note:
    "build/payload/" will be deleted before each "unpack" task

</details>


<details>

  <summary>work with apex images</summary>

AOSP already has tools like apexer, deapexer, sign_apex.py, these should suffice the needs on .apex and .capex.
Refer to Issue https://github.com/cfig/Android_boot_image_editor/issues/120

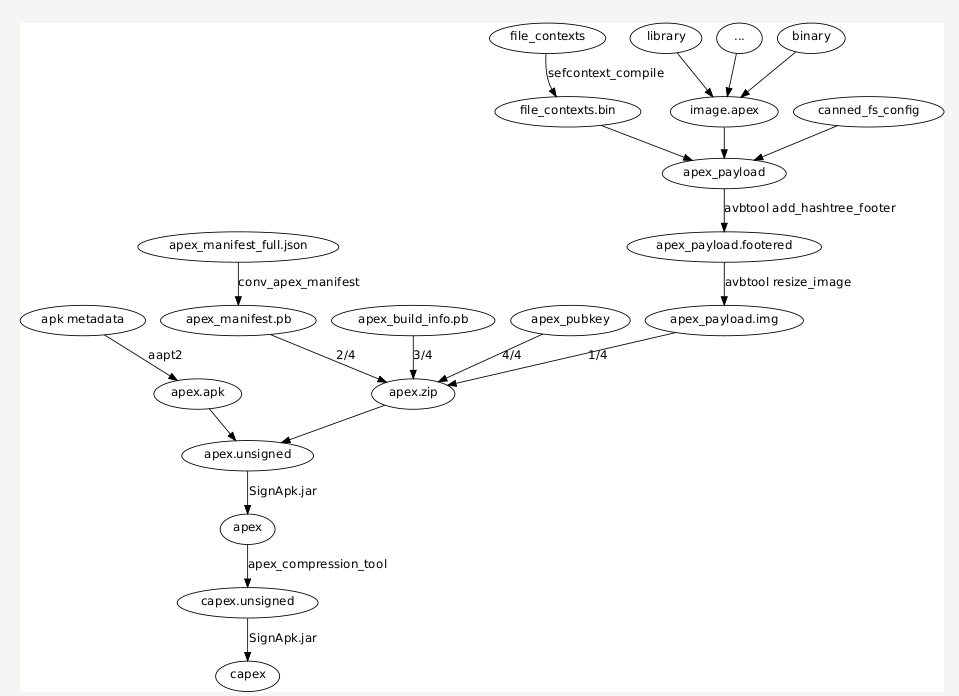

- For those who may be interested in apex generation flow, there is a graph here
![image](doc/apexer_generate_flow.png)

</details>

<details>
  <summary>How to work with vendor_dlkm.img</summary>

```bash
cp <your_vendor_dlkm.img> vendor_dlkm.img
cp <your_vbmeta_image> vbmeta.img
./gradlew unpack
# replace your .ko
./gradlew pack
```
Then flash `vbmeta.img.signed` and `vendor_dlkm.img.signed` to the device.

</details>

## boot.img layout
Read [boot layout](doc/layout.md) of Android boot.img and vendor\_boot.img.
Read [misc layout](doc/misc_image_layout.md) of misc\.img
